Description

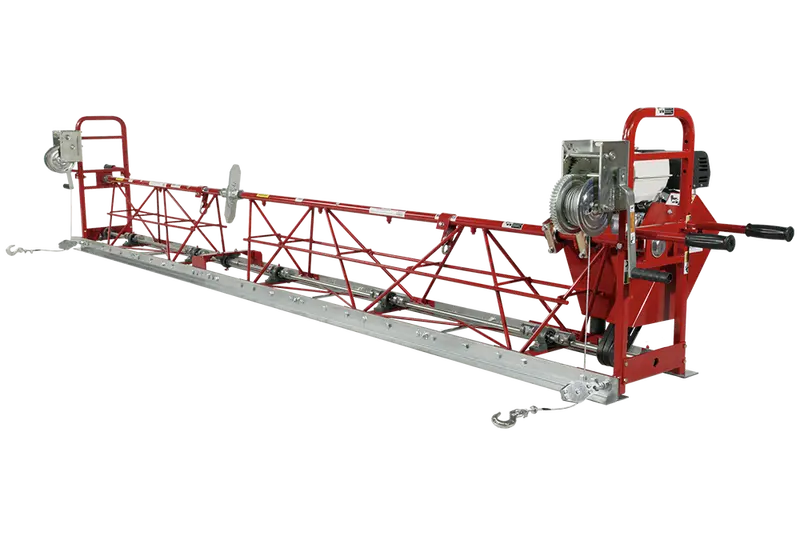

This engine-driven Allen® Razorback® Truss Screed has been used on countless projects around the globe for over four decades.

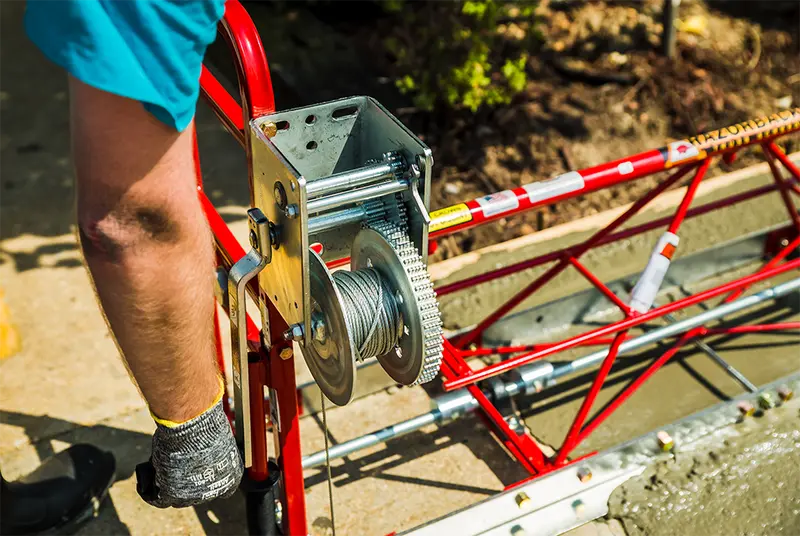

With gasoline engine power, driving vibration, and the hydraulic winch option, this self-contained truss screed is the industry standard for all steel framed truss screeds. Available with accessories for roadways, bridges, slab-on-grade and more
| Blade Weight | Blade Width |
| 37 lb. / 17 kg | 2 ft / .61 m |
| 46 lb. / 21 kg | 2.5 ft / .76 m |
| 90 lb. / 41 kg | 5 ft / 1.52 m |
| 135 lb. / 61 kg | 7.5 ft / 2.29 m |
| 180 lb. / 82 kg | 10 ft / 3.04 m |
Specifications
FRAME CONSTRUCTION Steel
VIBRATION SYSTEM Eccentric Shaft
VIBRATIONS 10,000 vpm
ENGINE (WIDTHS LESS THAN 42.5′) HONDA GX270 – 9 hp / 6.7 kW
ENGINE (WIDTHS MORE THAN 42.5′) HONDA GX340 – 11 hp / 8.2 kW
MAXIMUM WIDTH 65 ft / 19.8 m
LOWEST CONCRETE SLUMP 3 in / 7.6 cm
MAXIMUM CONSOLIDATION DEPTH 10 in / 25.4 cm
BLADES 10 Gauge Galvanized Steel
SE12 Operations & Parts Manual
SE12 Safety & Operations Manual
Warning: Cancer and Reproductive Harm – https://www.p65warnings.ca.gov/
