Cable System
The Quadrant Retractable HLL offers the ultimate in jobsite flexiblity as a temporary 2-person HLL system. The versatile length up to 65′ allows use in a wide range of environments with a user-friendly setup in seconds plus no-hassle storage of the durable cable lifeline within protective housing.
Features:
- Set galvanized cable at any length up to 65′
- Quick, easy setup with smooth payout
- Light, compact design with collapsible crank

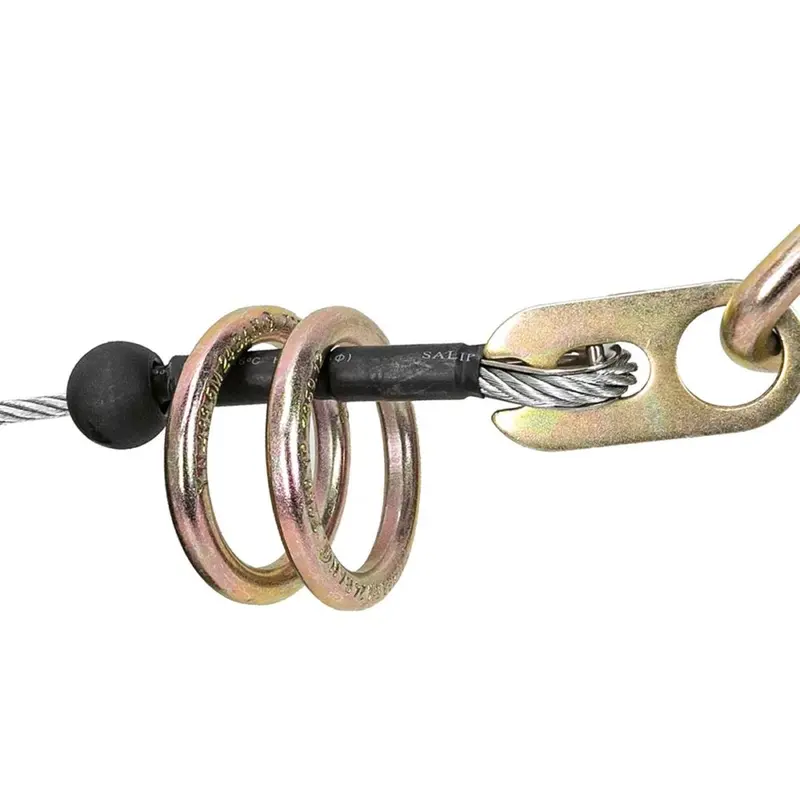

- Captive eye and carabiner connection points
- O-rings included to reduce cable wear
- Efficient dual-action tension release
- Built in fall indicator for easy inspection
- Free wheel mode for practical jobsite use
- Designed for stability when tensioning

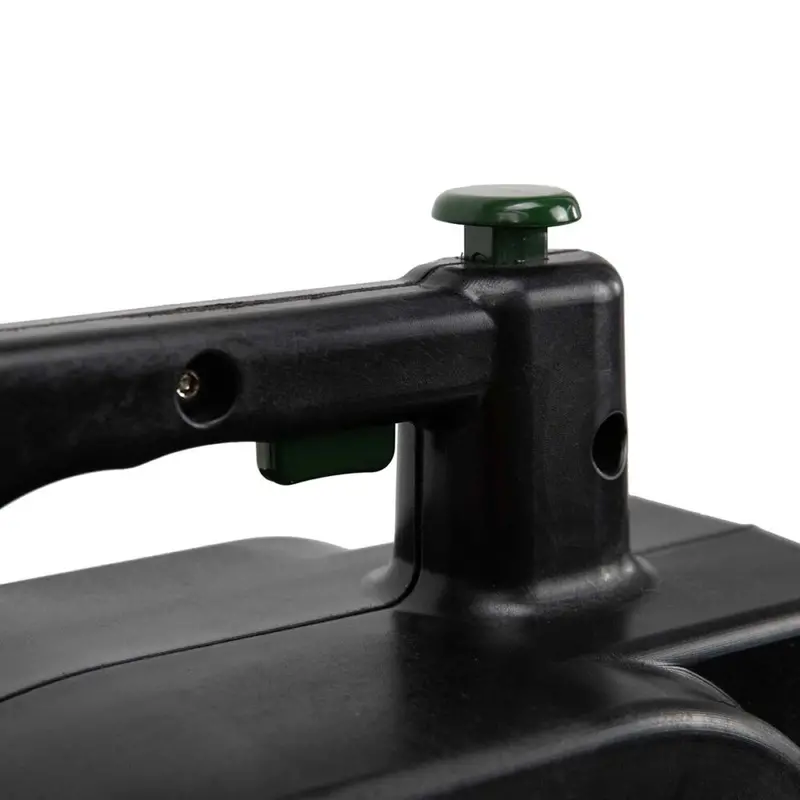

- Ergonomic handle designed for effortless carrying
- Power drill retraction adapter included (023-8095)
- Repairable by an authorized repair center
Specifications:
| Materials: | 1/4″ galvanized steel cable, steel and aluminum components, nylon and glass fiber housing |
| Weight: | 24.2 lbs. (11.0 kg) |
| Length: | 65′ (19.8 m) |
| Minimum Breaking Strength: | 5,000 lbs. (2268 kg) |
| System Capacity: | Maximum 2 users per system |
| ANSI Weight Capacity: | 130-310 lbs. (59-141 kg) |
| OSHA Standards: | 1926.502, 1910.140, 1910.66 |
| Peak Dynamic Pullout Load: | 2,500 lbs. (1134 kg) |
