Minnich On-Slab Concrete Dowel Drill

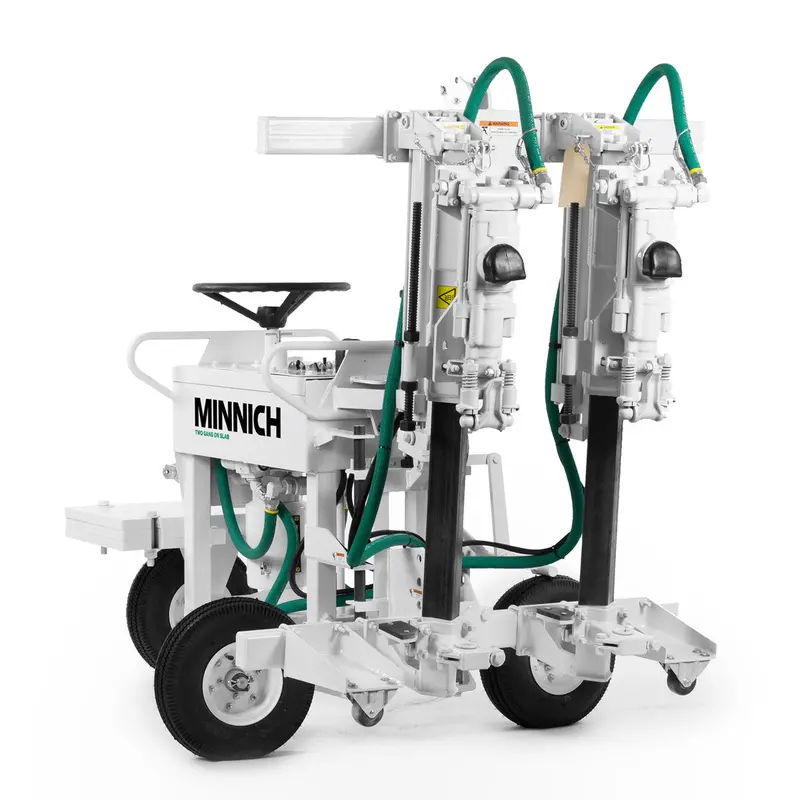

Minnich single-gang drills with steering provide on-slab drilling solutions for nearly any project. These units can drill in horizontal, vertical, and 35-degree stitch positions, and are also capable of skew drilling for maximum versatility. All models feature steering to enhance operator accuracy and control, an automatic shut-off that extends drill life, and optional dust collection to minimize dust and debris on the job site. For larger projects, a two-gang option is available to boost productivity, while the lightweight Minni model offers the same reliability in a more compact package for easier handling and transport.
Specifications
| Model | A-1C-48 | A-1C-36 | A-1C-30 | A-1C-24 | A-2C |
|---|---|---|---|---|---|
| Drill Steel Shank Size | .875″ x 4.25″ (22.2mm x 107.9mm) | .875″ x 4.25″ (22.2mm x 107.9mm) | .875″ x 3.25″ (22.2mm x 82.6mm) | .875″ x 3.25″ (22.2mm x 82.6mm) | .875″ x 4.25″ (22.2mm x 107.9 mm) |
| Drill Bit Diameter | .625″ – 2.50″ (15.9mm to 63.5mm) | .625″ – 2.50″ (15.9mm to 63.5mm) | .625″ – 1.625″ (15.9mm to 41.3mm) | .625″ – 1.00″ (15.9mm to 25.4mm) | .625″ – 2.50″ (15.9mm to 63.5mm) |
| *Maximum Drill Depth | 18″ (45.7cm) | 10″ (25.4cm) | 10″ (25.4cm) | 7″ (17.8cm) | 18″ (45.7cm) |
| Drill Distance From Top of Slab | 2.5″ – 12.75″ (6.4cm to 32.4cm) | 2.5″ – 12.75″ (6.4cm to 32.4cm) | 2.5″ – 12.75″ (6.4cm to 32.4cm) | 2.5″ – 12.75″ (6.4cm to 32.4cm) | 1.5″ – 11.75″ (3.8cm to 29.8cm) |
| Minimum Cutout Width | 48″ (121.9cm) | 36″ (91.4cm) | 30″ (76.2cm) | 24″ (61.0cm | 48″ (121.9cm) |
| SCFM Required | 92.2 (2.61 m3/min) | 92.2 (2.61 m3/min) | 90 (2.55 m3/min) | 36 (2.01 m3/min) | 184.4 (5.22 m3/min) |
| Drill Steel Length U.C. | 24″ (61.0cm) | 12″ (30.5cm) | 12″ (30.5cm) | 9″ (22.9cm) | 24″ (61.0cm) |
| PSIG Required | 120 (0.83MPa) | 120 (0.83MPa) | 90 (0.62MPa) | 90 (0.62MPa) | 120 (0.62MPa) |
| Weight | 700 LBS (317.5 Kg) | 665 LBS (301.6 Kg) | 630 LBS (285.8 Kg) | 605 LBS (274.4 Kg) | 900 LBS (408.2 Kg) |
