Genie Super Hoist Pneumatic Construction Lift System

Description

Overview of Genie Super Hoist Models

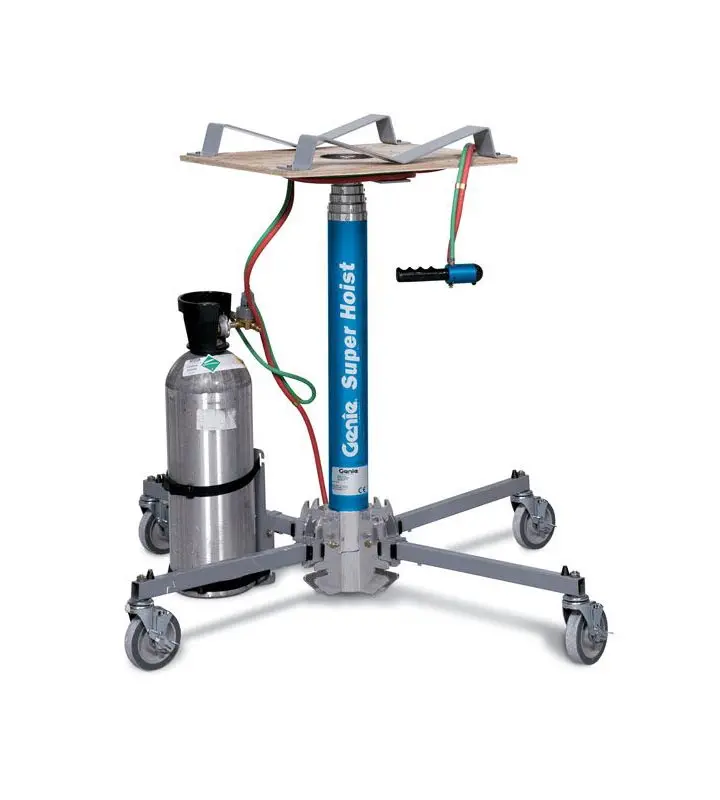

GH-3.8 Super Hoist

The GH-3.8 is a compact pneumatic material lift designed for contractors who need higher load capacity in a portable unit. It is commonly used for:

• HVAC duct installation

• Sheetrock and ceiling panel placement

• Plumbing pipe positioning

• Electrical fixture installation

• Mechanical equipment installation

With a 350 lb lifting capacity, the GH-3.8 is ideal for heavier materials while remaining lightweight enough to transport easily between job sites.

Features + Benefits

• Sets up in seconds with no tools required
• Legs fold out from base for quick setup and are held in position with safety locks
• One-piece platform attaches to any size CO2 bottle with a twist of the wrist (CO2 bottle not included)
• 85 PSI recommended
• Compact and lightweight for easy portability by one person
• Rubber nonmarking locking casters
• Legs fold up for easy storage
• Auto-lubricating, with oil reservoir on top of each piston in cylinder to prevent lubricating oil from draining
• Easy to service
• Made of heat-treated aluminum

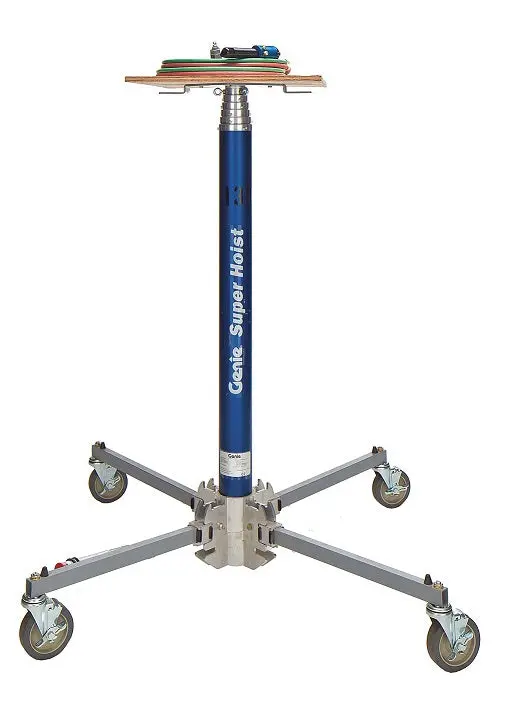

GH-5.6 Super Hoist

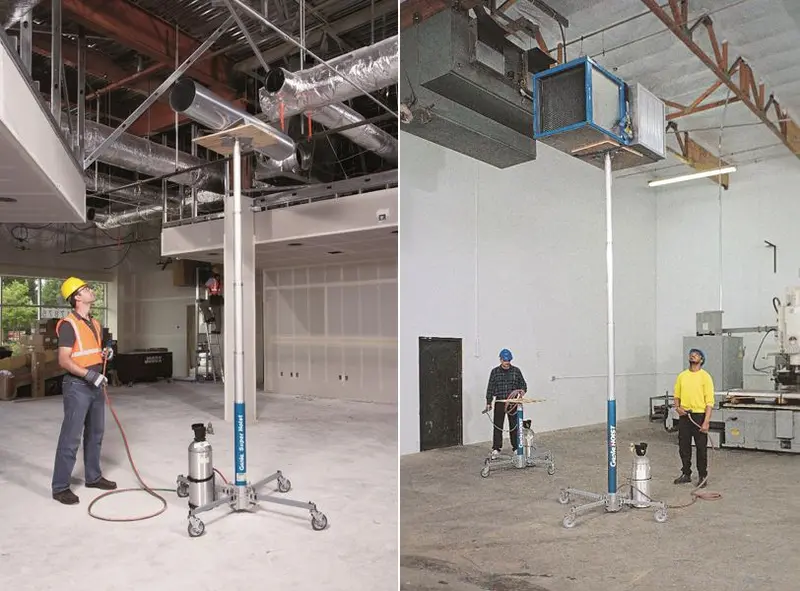

The GH-5.6 provides significantly greater lifting height while maintaining portability. It is powered by CO₂ or compressed air, allowing quick setup and operation without electrical power.

Typical applications include:

• Lifting air ducts and ventilation systems

• Installing ceiling panels and lighting fixtures

• Positioning heaters and chimney pipe

• General contractor material handling

Its 18 ft 4.5 in maximum lift height makes it a strong option for installations that require additional reach.

Spec Sheet

---

Key Differences Between GH-3.8 and GH-5.6

Feature	Best Choice
Higher lifting capacity	GH-3.8
Greater lift height	GH-5.6
More compact stowed size	GH-3.8
Best for taller ceiling installs	GH-5.6

Model	Max Lift Height	Capacity	Stowed Height	Machine Weight	Power Source
GH-3.8	12 ft 5.6 in	350 lb	3 ft 5 in	64 lb	CO₂ or compressed air
GH-5.6	18 ft 4.5 in	150 lb	4 ft 6 in	69 lb	CO₂ or compressed air

GH-3.8 vs GH-5.6 Comparison

Feature	GH-3.8	GH-5.6
Lift Height	12 ft 5.6 in	18 ft 4.5 in
Capacity	Higher	Lower
Portability	Very compact	Slightly taller
Best Use	Heavier materials	Higher ceilings

Frequently Asked Questions

What is a Genie Super Hoist?

The Genie Super Hoist is a portable pneumatic material lift designed for lifting and positioning materials during construction, HVAC installation, and mechanical work.

How does the Super Hoist work?

The lift operates using CO₂ or compressed air, which powers the pneumatic cylinder to raise materials quickly and safely without electrical power.

What is the difference between GH-3.8 and GH-5.6?

The GH-3.8 has higher lifting capacity, while the GH-5.6 provides greater lift height for taller ceiling installations.

What can a Super Hoist lift?

Common materials include:

• HVAC ducts

• sheetrock and drywall

• ceiling panels

• plumbing pipe

• electrical fixtures

Feature	Super Hoist	Manual Material Lift
Power	Pneumatic (CO₂ / air)	Manual winch
Setup	Very fast	Moderate
Weight	Extremely lightweight	Heavier
Best Use	HVAC and overhead installs	General construction lifting
