Description

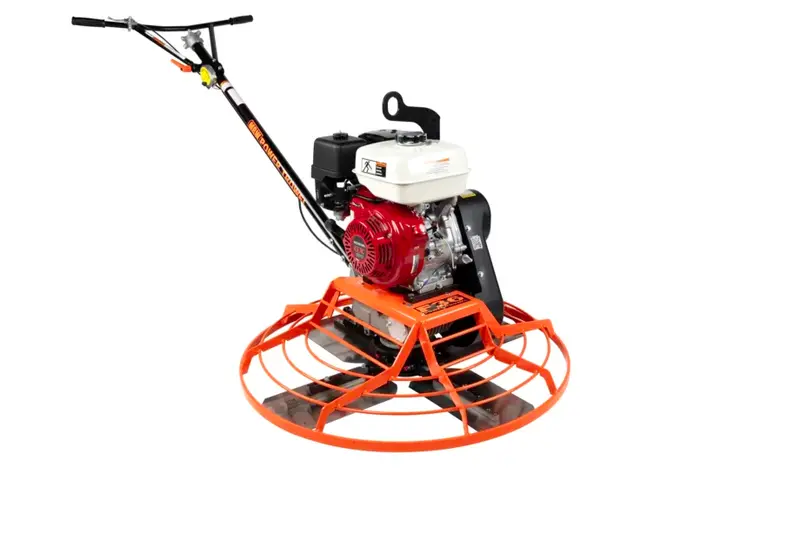

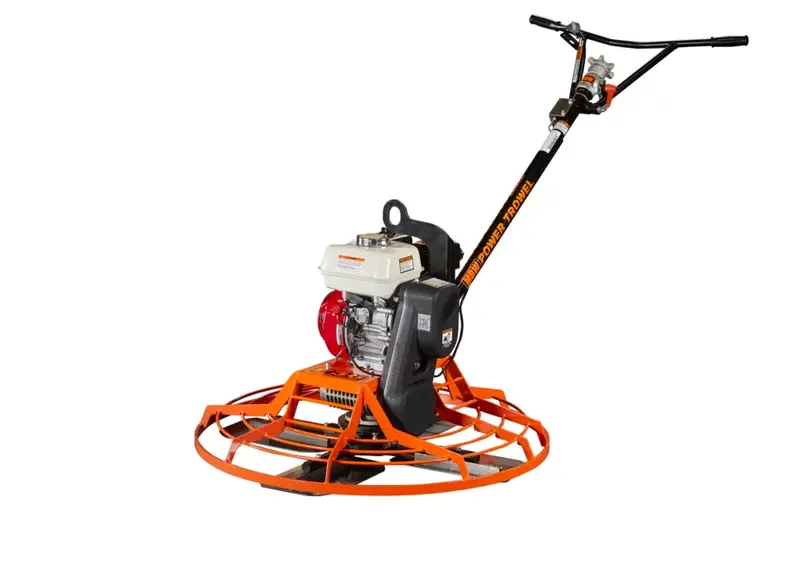

MBW’s 3-foot walk-behind trowels come in a variety of engine and handle options to suit all operators.
With a gearbox machined and built in-house, these units are designed to last. Teflon inserts in the one-piece spider assembly ensure that the trowel arms will never seize up. The MBW F36 also utilizes hex trowel arms longer than the industry standard, resulting in less deflection.
Additionally, these units are offered in a High Torque version that allows for a larger window of adjustability on blade RPMs, both on the high and low ends.
The F36 comes with four handle options: Standard, Low Vibration, EZ Pitch and the new Power Pitch.
Specifications |
F36 |
| Engine Options Operating Weight | Honda GX160183 lbs (83 kg)Honda GX270209 lbs (95 kg)Honda GX270 High Torque216 lbs (98 kg) |
| Ring Diameter | 37.5 in (95 cm) |
| Blade Sweep Diameter | 35.3 in (90 cm) |
| Trowel Speed | 70-135 rpm35-180 rpm (High Torque) |
| Low Vibration Handle Height | 35.8″ Min – 43.3″ Max(91-110 cm) |
| Noise Level | 85-105 dBA |
